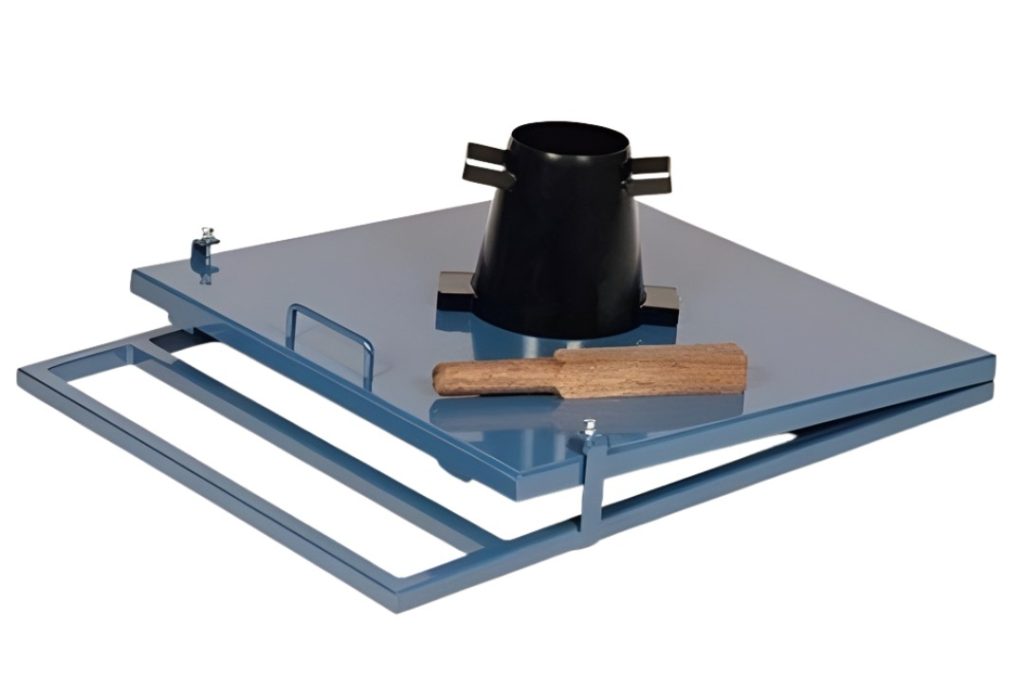

Flow Table For Concrete Workability Testing

Flow Table For Concrete

Compliance Standards:
IS 1903
EN 12350-5

The Flow Table for Concrete is used to determine the flow and workability of fresh concrete, particularly for highly workable and self-compacting mixes. The apparatus is designed and manufactured in accordance with IS 1903 and EN 12350-5, ensuring reliable and repeatable test results.

The flow table features a rigid and stable platform of size 900 × 900 mm (L × W), providing adequate working area and uniform movement during testing. It is constructed for durability and consistent performance under repeated use in laboratory and site conditions.

The apparatus is supplied with a stainless steel flow cone, precisely manufactured with the following dimensions:

Cone thickness: 1.5 mm
Top diameter: 130 ± 2 mm
Base diameter: 200 ± 2 mm
Height: 200 ± 2 mm
