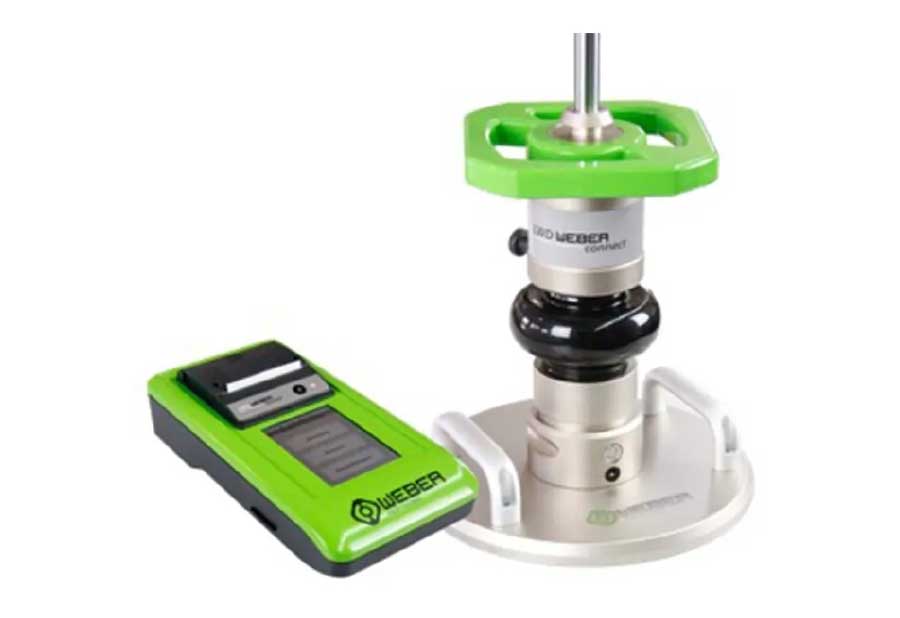

Weberconnect Portable Lightweight Deflectometer

Weberconnect Light Weight Deflectometer

The Weberconnect is a portable Light Weight Deflectometer (LWD) used to measure the dynamic plate load bearing capacity (Evd) of compacted subgrades, sub-bases, and granular fill layers during road and railway construction. It delivers a standardised impulse load via a falling weight and measures surface deflection to calculate the Evd modulus in MPa — providing instant compaction quality verification without the delays of traditional static plate load tests.

JS Civil Lab Solutions supplies the Weberconnect LWD for highway contractors, earthwork QC teams, and geotechnical consultants needing fast, reliable compaction verification on large infrastructure projects.

Technical Specifications

• Drop weight: 10 kg (standardised)
• Drop height: 72 cm
• Load pulse: Approx. 17 ms half-sine
• Plate diameters: 100 mm, 200 mm, 300 mm (interchangeable)
• Deflection sensor: Seismic geophone or LVDT
• Display: Integrated digital controller with instant Evd readout
• Bluetooth: Wireless data transfer to tablet/smartphone app
• Standards: EN 12697-29, ASTM E2583, German TP BF-StB Part B 8.3

Weberconnect vs PRIMA-100

Both are 10 kg LWDs with 72 cm drop height and interchangeable plates. The Weberconnect adds Bluetooth connectivity and smartphone app integration for paperless site reporting and GPS-tagged test records — making it the preferred choice for projects requiring digital QC documentation. The PRIMA-100 (ID 494) uses a handheld controller with direct readout.

Enquire

Contact JS Civil Lab Solutions at +91 93596 24761 for pricing, demo, and rental. Available for purchase and short-term hire across India.
