LWD PRIMA-100

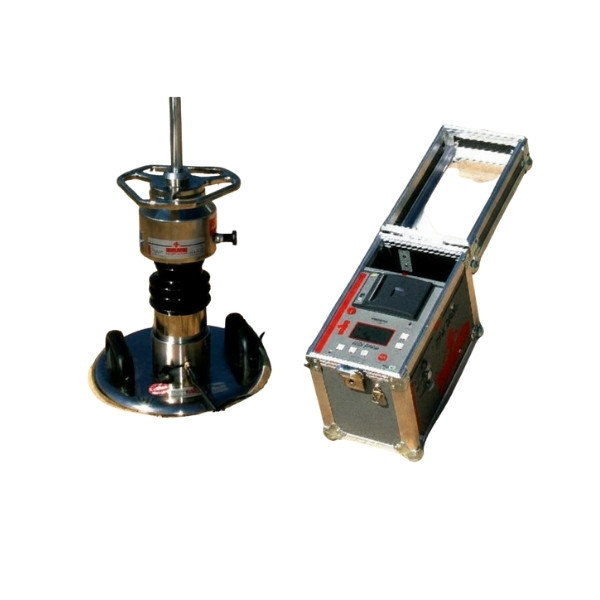

PRIMA-100 Light Weight Deflectometer (LWD)

The PRIMA-100 Light Weight Deflectometer is a portable falling-weight device used to measure the dynamic plate load bearing capacity (Evd) of unbound granular layers, sub-bases, subgrades, and compacted fill during road construction. It delivers a standardised impulse load and records deflection via a seismic transducer, giving instant Evd values in MPa.

JS Civil Lab Solutions supplies the PRIMA-100 LWD for highway QC labs, earthwork contractors, and geotechnical consultants who need fast, non-destructive compaction verification without the delay of traditional plate load tests.

Technical Specifications

• Drop weight: 10 kg
• Drop height: 72 cm (standardised)
• Load pulse: ~17 ms half-sine
• Plate diameter: 100, 200, or 300 mm (interchangeable)
• Deflection sensor: Seismic transducer (±2,000 μm range)
• Display: Handheld controller with instant Evd readout
• Standards: EN 12697-29, ASTM E2583, German TP BF-StB Part B 8.3

Advantage Over Static PLT

A conventional plate load test (IS 1888) takes 4–6 hours per point. The PRIMA-100 completes a test in under 2 minutes per point, making it practical for 100% spot-check coverage of embankment layers on high-speed rail and highway projects.

Enquire

Contact JS Civil Lab Solutions at +91 93596 24761 for a demonstration and quote. Available for purchase and rental across India.
