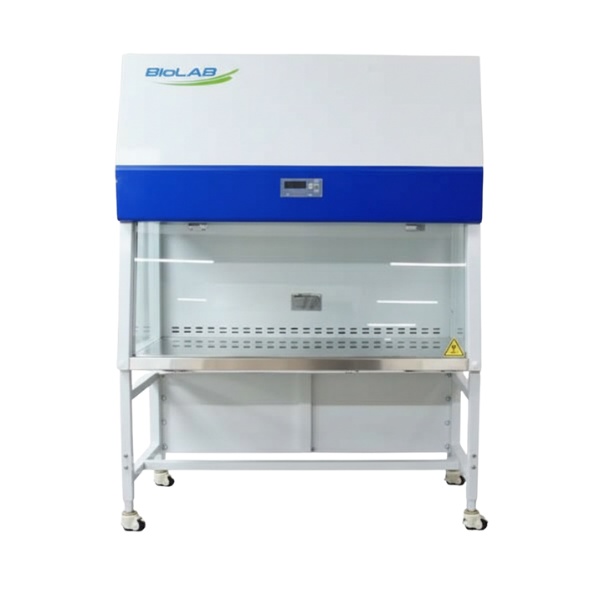

Laboratory Clean Air Cabinet

Laminar Flow Cabinet — Cleanroom Workstation

The Laminar Flow Cabinet (Laminar Flow Hood) provides a particle-free, ISO Class 5 (Class 100) working environment by passing HEPA-filtered air in a uniform laminar pattern over the work surface. It is used in pharmaceutical labs, microbiology, tissue culture, IV preparation, electronics assembly, and any application requiring contamination-free manipulation.

JS Civil Lab Solutions supplies horizontal and vertical laminar flow cabinets in bench-top and floor-standing models for pharma QC, research institutes, and clean manufacturing facilities.

Specifications

• Airflow: Horizontal or vertical laminar (model-specific)
• HEPA filter efficiency: 99.97% @ 0.3 μm particles
• Cleanliness class: ISO 5 (Class 100) at work surface
• Air velocity: 0.45 ± 0.1 m/s (USP <797> requirement)
• Interior: SS 304 work surface, sloped rear for drainage
• UV lamp: 254 nm germicidal (pre-work surface decontamination)
• Fluorescent illumination: ≥1,000 Lux at work surface
• Standards: ISO 14644-1, USP <797>, WHO GMP

Horizontal vs Vertical Laminar Flow

Horizontal LFCs blow air from the back filter toward the operator — ideal for sterile product preparation. Vertical LFCs blow air downward from the ceiling filter — preferred when working with hazardous samples (though a biosafety cabinet is required for BSL-2 or higher organisms).

Get a Quote

Contact JS Civil Lab Solutions at +91 93596 24761 for sizing, DQ/IQ/OQ documentation, and installation support across India.
