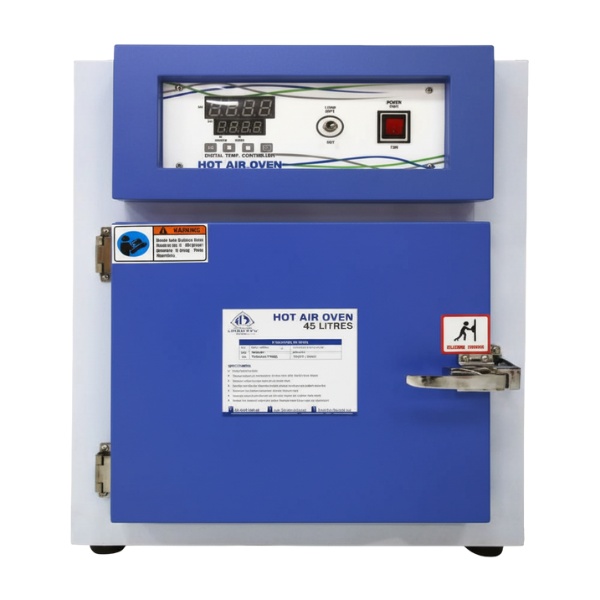

Hot Air Oven — Laboratory Drying and Sterilisation

The Laboratory Hot Air Oven is used for dry-heat sterilisation, drying, curing, and heat treatment of glassware, instruments, soil samples, aggregate, and pharmaceutical materials. It uses a forced-air circulation (convection) system to maintain uniform temperature throughout the chamber, eliminating hot spots that cause uneven results.

JS Civil Lab Solutions supplies hot air ovens from 50 L to 500 L capacity, with temperature ranges up to 250°C or 300°C, for civil, pharma, and general laboratory use.

Specifications

• Temperature range: Ambient +5°C to 250°C (standard) / 300°C (high-temp)
• Temperature uniformity: ±2°C across working chamber
• Controller: Digital PID with timer and over-temperature cut-off
• Airflow: Forced convection fan for uniform distribution
• Interior: SS 304 mirror-finish chamber
• Capacity: 50 L, 100 L, 150 L, 200 L, 300 L, 500 L
• Compliance: IS 1080, IP/BP sterilisation cycle (160°C/2 h or 170°C/1 h), USP <1222>

Applications in Civil and Pharma Labs

Soil moisture content testing (IS 2720 Part 2), aggregate surface-dry density determination, drying of concrete core samples, sterilisation of glassware and surgical instruments, baking of coated tablets, and pharmaceutical stability studies at elevated temperatures.

Order

Contact JS Civil Lab Solutions at +91 93596 24761 for sizing advice, calibration, and IQ/OQ documents.
