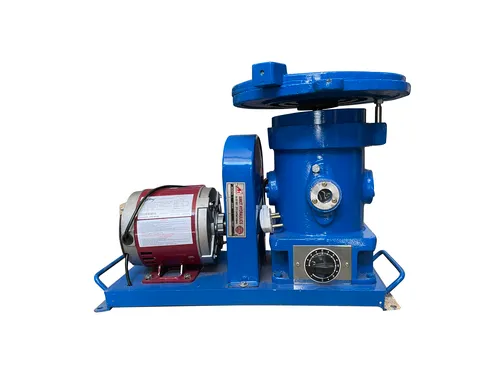

Sieve Shaker — Mechanical Particle Size Analysis

The Sieve Shaker is used for mechanical particle size analysis (sieve analysis) of aggregates, soils, cement, sand, and granular materials as per IS 383, IS 2386, IS 1489, ASTM C136, and ASTM D422. The motor-driven shaker provides a consistent horizontal and vertical vibration pattern for uniform separation of particles through a nested stack of standard IS/ASTM sieves.

JS Civil Lab Solutions supplies motorised sieve shakers with timer control, compatible with 200 mm and 300 mm diameter IS sieves.

Specifications

• Sieve diameter compatibility: 200 mm (standard) or 300 mm (coarse aggregate)
• Stack height: Up to 8 sieves + pan + lid
• Motor: 0.25 HP, 1,440 rpm
• Vibration type: Circular horizontal + vertical tapping (3D vibration)
• Timer: 0–60 min digital or mechanical timer
• Amplitude adjustment: Variable eccentric weight
• Compliance: IS 460, IS 2386 Part 1, ASTM C136, ASTM D422, BS 812 Part 103

Applications

Grading of coarse and fine aggregates for concrete mix design, bituminous mix design (Marshall, Superpave), sub-base material grading, soil classification, and cement fineness testing.

Order

Available for 200 mm and 300 mm sieve sets. Sieves supplied separately or as a full grading kit. Contact JS Civil Lab Solutions at +91 93596 24761.
