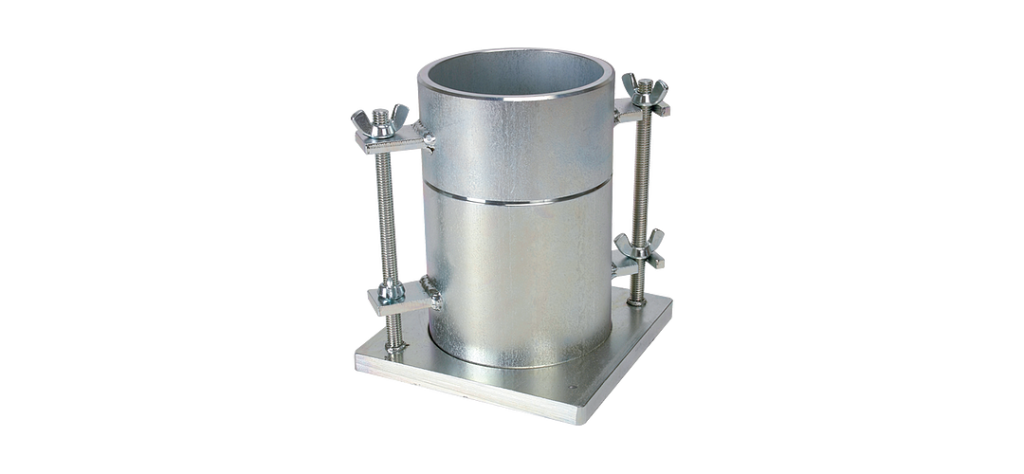

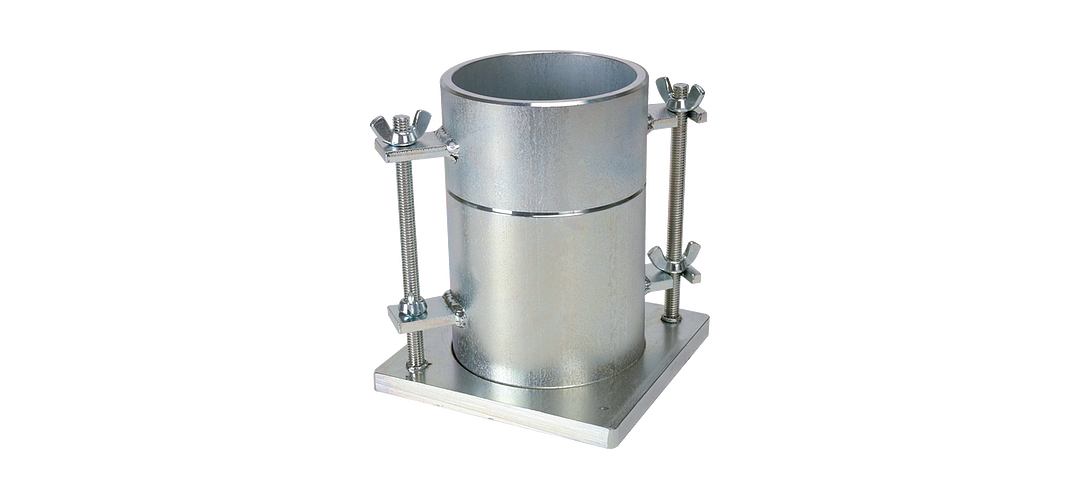

Proctor Mould — Soil Compaction Testing

The Proctor Mould is used for the standard and modified Proctor compaction test to determine the optimum moisture content (OMC) and maximum dry density (MDD) of soils as per IS 2720 Part 7 (Standard) and IS 2720 Part 8 (Modified), and ASTM D698 / D1557. This data is essential for earthwork quality control on roads, embankments, and foundations.

JS Civil Lab Solutions supplies both standard and modified Proctor moulds with rammer sets, tested to IS specifications.

Specifications — Standard Proctor (IS 2720 Part 7)

• Mould internal diameter: 100 mm
• Mould height: 127.3 mm
• Rammer: 2.6 kg, 310 mm drop
• Layers: 3 | Blows per layer: 25

Modified Proctor (IS 2720 Part 8 / ASTM D1557)

• Mould internal diameter: 100 mm or 150 mm
• Rammer: 4.89 kg, 450 mm drop
• Layers: 5 | Blows per layer: 25 (100 mm mould)

Why Proctor Testing Matters

Under-compacted fill can settle and cause pavement cracking, slope failure, or foundation movement. The Proctor test defines the target dry density that site engineers must achieve during compaction — verified by field density tests using the Core Cutter or Sand Replacement method.

Order Proctor Moulds

Available as standard set, modified set, or complete compaction lab kit. Contact JS Civil Lab Solutions at +91 93596 24761 for pricing.
