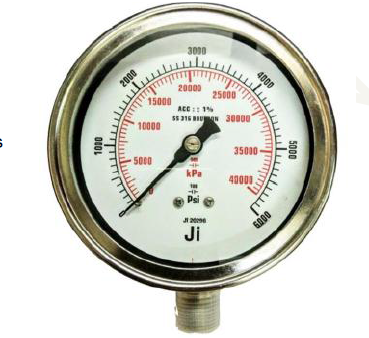

Pressure Gauge-Analog

Analogue Pressure Gauge

The Analogue Pressure Gauge is a general-purpose Bourdon-tube instrument used across civil, mechanical, and laboratory applications to monitor positive pressure — including hydraulic jack and proving ring systems, water pressure testing, pumps, and compressed air lines. Direct dial readout requires no power source, making it reliable for continuous field and laboratory use.

JS Civil Lab Solutions supplies analogue pressure gauges in a range of pressure ranges and dial sizes for hydraulic test rigs, calibration setups, and general site use.

Specifications

• Range: 0–10 bar up to 0–1000 bar (application-dependent)
• Dial size: 63 mm, 100 mm, or 150 mm
• Mechanism: Bourdon tube, brass or stainless steel
• Connection: 1/4″ or 1/2″ BSP bottom or back entry
• Accuracy: ±1.5% to ±2.5% of full scale (Class 1.5/2.5)
• Compliance: IS 3624

Applications

Hydraulic jack and pull-out test rig pressure monitoring, water pipe pressure testing, compressed air line checks, pump discharge pressure verification, and calibration reference for field hydraulic equipment.

Order

Contact JS Civil Lab Solutions at +91 93596 24761 specifying pressure range and dial size needed.
