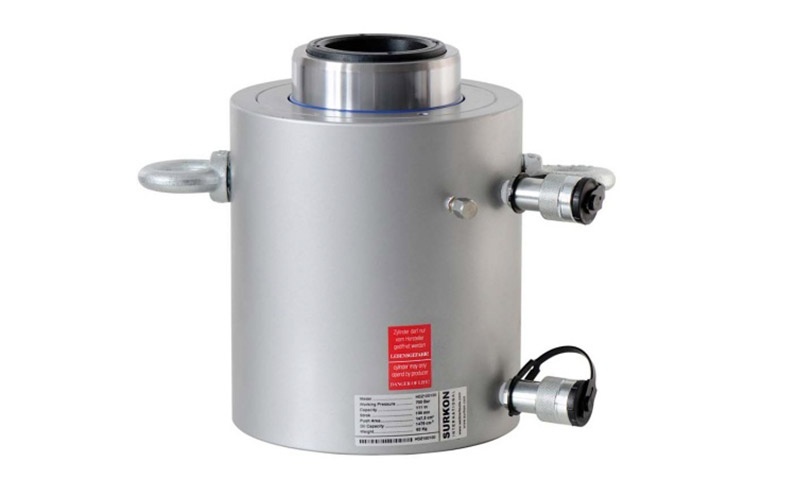

Double Acting Hydraulic Jack — 1,000 Tonne Capacity

The Double Acting Hydraulic Jack (1,000 Tonne / 10,000 kN) is a heavy-duty centre-hole hydraulic cylinder used for post-tensioning of prestressed concrete tendons, high-capacity pile load testing, structural load application in large-scale testing, and hydraulic pressing operations in civil and geotechnical engineering. Double acting means the cylinder both extends and retracts under hydraulic pressure — unlike single-acting jacks that rely on spring or gravity return.

JS Civil Lab Solutions supplies 1,000 T double acting hydraulic jacks for post-tensioning contractors, foundation testing agencies, and structural testing laboratories requiring high-capacity controlled load application.

Technical Specifications

• Capacity: 1,000 tonnes (10,000 kN)
• Stroke: 150–300 mm (model-specific)
• Centre hole: 75–130 mm dia (for tendon/anchor rod pass-through)
• Operating pressure: 700 bar maximum
• Extension: Hydraulic (controlled extension)
• Retraction: Hydraulic (double acting)
• Accessories: Electric hydraulic pump, pressure gauge, hose set
• Compliance: IS 1891, IS 11209, BS 8081

Applications

Stressing of post-tensioned box girder bridges, prestressed concrete piles, ground anchors, and pile load testing frames. Used for static load tests on bored piles (IS 2911 Part 4) where reaction frames and high-capacity jacks are required to apply loads up to 2× design capacity.

Enquire

Contact JS Civil Lab Solutions at +91 93596 24761 for jack selection, pump sizing, and calibration certificate. Jacks supplied with NABL-traceable calibration valid 12 months.
