Concrete Mixer

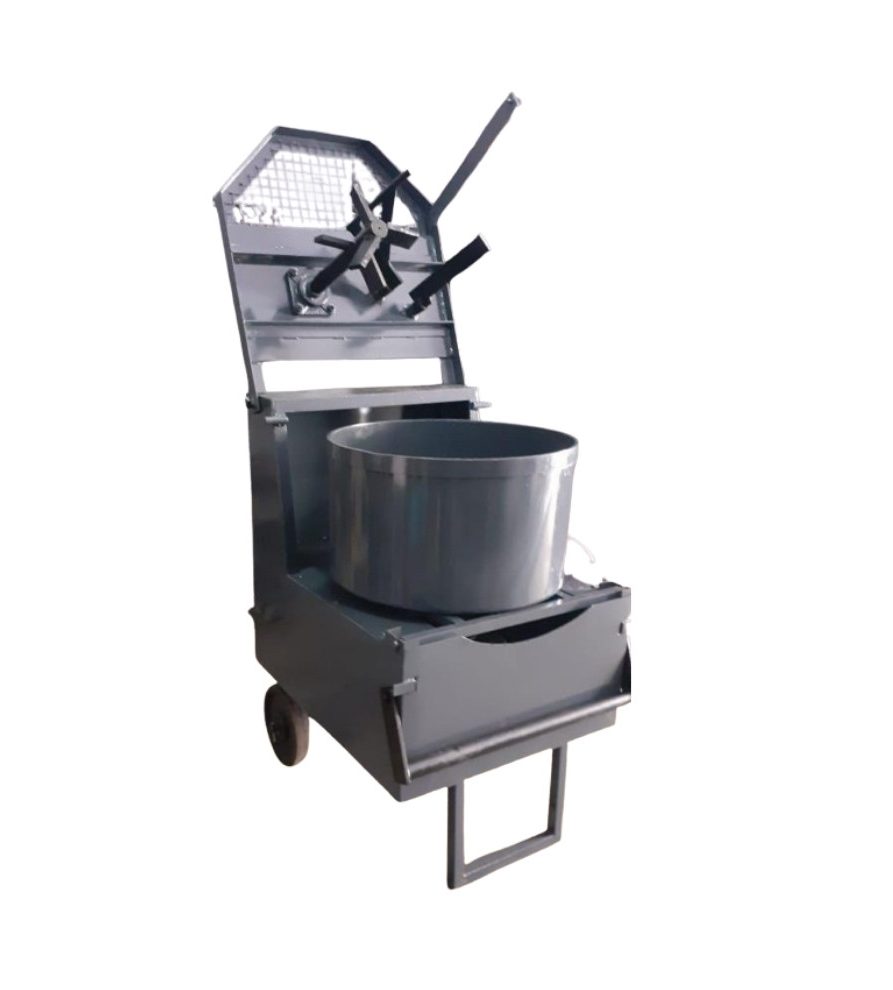

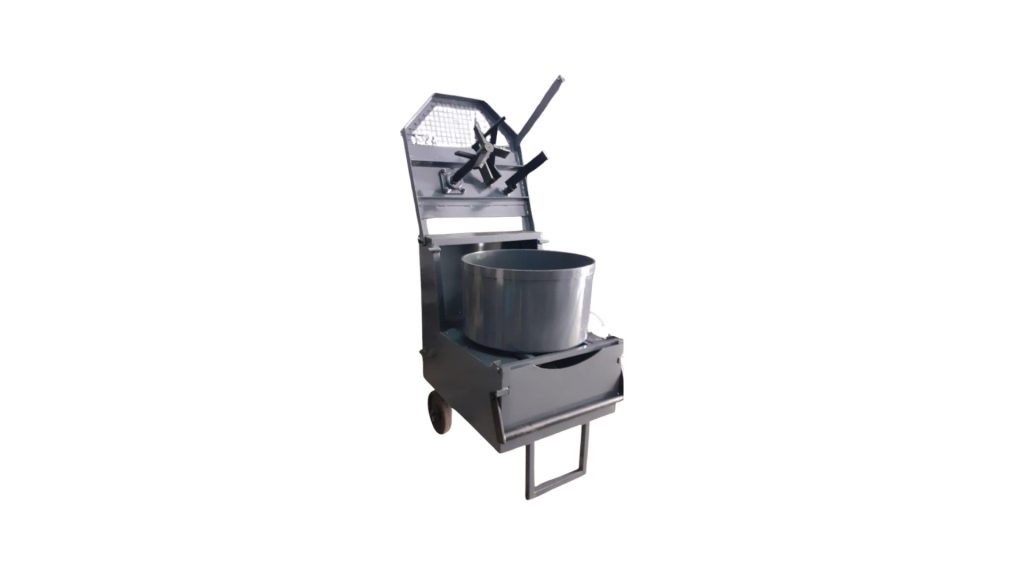

40-Litre Concrete Mixer — Laboratory Concrete Mixing

The 40-Litre Laboratory Concrete Mixer is a tilting drum pan mixer used for mixing concrete, mortar, and cement-based composites for concrete mix design trials, cube casting, and small batch production as per IS 516, IS 456, and IS 10262. The tilting drum design enables complete emptying without residue, and variable speed control ensures consistent mixing energy.

JS Civil Lab Solutions supplies 40 L and larger pan mixers for concrete testing laboratories, ready-mix quality control, and research facilities.

Specifications

• Capacity: 40 litres (effective batch volume)
• Drum type: Tilting drum or pan (model-specific)
• Motor: 1.0–1.5 HP, single-phase 230 V
• Speed: 20–30 rpm
• Construction: MS drum with rubber liner (replaceable)
• Discharge: Tilting handle for clean discharge into moulds
• Compliance: IS 516, IS 1791 (pan mixer standard)

Mix Design Use

The mixer is used for trial mixes during concrete mix design to IS 10262:2019, testing workability (slump, flow), casting cube/cylinder specimens, and evaluating admixture dosage effects. Consistent drum mixing eliminates hand-mixing variability in test specimens.

Enquire

Contact JS Civil Lab Solutions at +91 93596 24761 for pricing on 40 L, 60 L, and 100 L models. Spare parts and rubber liners also available.
