Concrete Mixer

60-Litre Laboratory Concrete Mixer

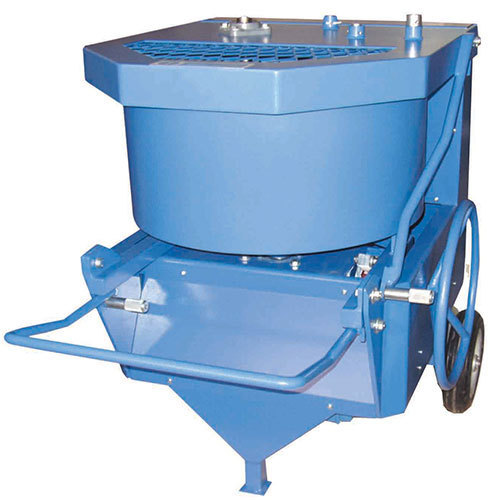

The 60-Litre Concrete Mixer is a tilting drum pan mixer designed for mid-size concrete mix design trials, larger batch cube casting, and mortar mixing in construction testing laboratories. The larger 60 L capacity over the standard 40 L model allows more specimens to be cast from a single batch — improving consistency across cube sets and reducing test variability.

JS Civil Lab Solutions supplies 60 L and other capacity concrete mixers for concrete QC labs, ready-mix plant laboratories, and civil engineering research departments.

Specifications

• Capacity: 60 litres (effective batch)
• Motor: 1.5 HP, single-phase 230 V or three-phase 415 V
• Speed: 20–30 rpm
• Drum: Tilting-type, mild steel with replaceable rubber liner
• Discharge: Tilting handle for clean, residue-free discharge
• Frame: Heavy-duty MS frame with castors for mobility
• Compliance: IS 1791, IS 516

When to Choose 60L vs 40L

The 60 L mixer is preferred when casting 6+ cubes per batch for statistical compliance testing (IS 456 requires minimum 3 cubes per sample, with 2 samples typically taken per batch). The extra capacity eliminates the need for successive smaller batches that can introduce variation in w/c ratio.

Order

Contact JS Civil Lab Solutions at +91 93596 24761 for pricing on all mixer capacities. Spare rubber liners and paddles available.
