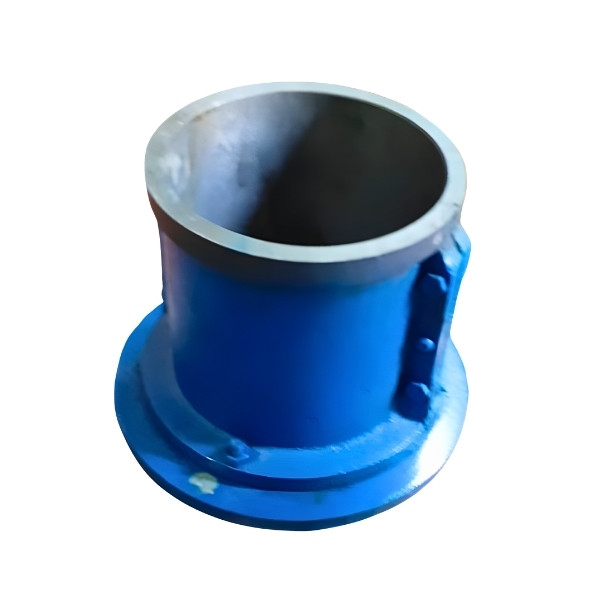

Cast Iron Concrete Cylinder Mould

Cast Iron Cylinder Mould — Concrete Compressive Strength

The Cast Iron Cylinder Mould is used for casting 150 mm diameter × 300 mm height concrete cylinder specimens for compressive strength testing as per ASTM C39, BS EN 12390-3, and IS 516. Cylinder specimens are preferred in international practice and are mandatory for projects specifying American or European concrete standards.

JS Civil Lab Solutions supplies precision-machined cast iron cylinder moulds that ensure dimensional accuracy and ease of demoulding.

Specifications

• Standard size: 150 mm dia × 300 mm height (ASTM C39)
• Alternative: 100 mm dia × 200 mm height
• Material: High-grade cast iron or steel
• Inner surface: Machined smooth for accurate specimen geometry
• Base plate: Bolted, leak-free design
• Compliance: ASTM C31, ASTM C39, BS EN 12390-1, IS 516

Cylinder vs Cube Specimens

Cylinder specimens (dia:height = 1:2) test uniaxial compressive strength without end-restraint effects. The standard conversion factor between cylinder and cube strength is approximately 0.8 (i.e., cylinder strength ≈ 80% of equivalent cube strength). Both are valid for structural concrete design but specified separately in Indian and international codes.

Get a Quote

Available in standard and custom sizes. For bulk procurement or calibration certificates, contact JS Civil Lab Solutions at +91 93596 24761.
