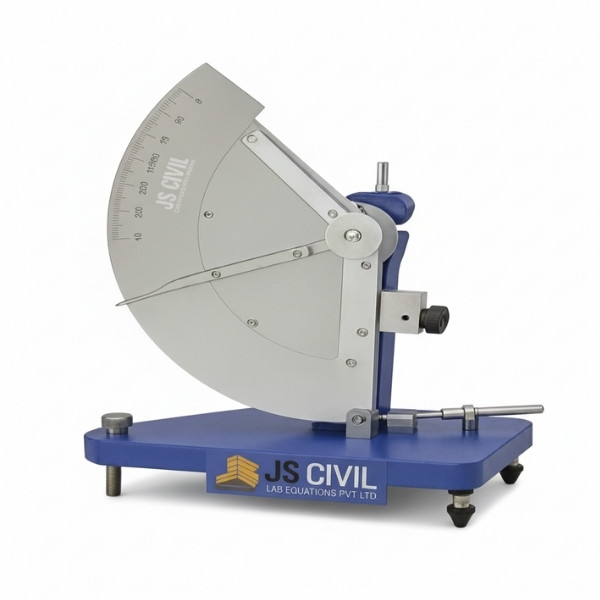

Tearing Strength Tester (Elmendorf)

Elmendorf Tearing Strength Tester — Paper Tear Resistance

The Elmendorf Tearing Strength Tester measures the energy required to tear paper, board, tissue, and film through a specified distance (43 mm) after an initial slit cut as per ISO 1974, TAPPI T414, IS 1060 Part 4, and ASTM D1922. The pendulum-type instrument releases a fixed mass from a set height; the energy absorbed in tearing is indicated on the scale as tearing force in millinewtons (mN) or grammes-force (gf).

JS Civil Lab Solutions supplies Elmendorf tear testers for paper mills, tissue manufacturers, board QC labs, and flexible film testing facilities.

Specifications

• Pendulum masses: 200 mN, 400 mN, 800 mN, 1,600 mN, 3,200 mN (interchangeable)
• Tear distance: 43 mm (ISO 1974 standard)
• Number of plies: 1–16 (stacked to bring reading into scale range)
• Scale: Analogue pointer or digital readout with auto-calculation
• Specimen: Pre-slit 63 × 76 mm (ISO 1974) or 63 × 75 mm (TAPPI)
• Compliance: ISO 1974, TAPPI T414, IS 1060 Part 4, ASTM D1922

Tear Index

Tear index (mN·m²/g) = (Tearing force in mN × 1,000) / GSM. This normalises tear strength to basis weight, allowing comparison across paper grades. Newsprint typically 4–6 mN·m²/g; kraft liner 8–15 mN·m²/g; tissue 3–8 mN·m²/g depending on furnish.

Order

Contact JS Civil Lab Solutions at +91 93596 24761 for pricing. Pendulum masses and specimen cutting gauge available as accessories.
