Blaine Air Permeability Test: Cement Fineness (IS 4031 Part 2)
Two cement bags, same grade, same brand. One sets and gains strength on schedule; the other stays soft and bleeds water for hours. Nine times out of ten, the difference is fineness — how finely the clinker was ground — and the Blaine air permeability test is how you catch it before it reaches the […]
Two cement bags, same grade, same brand. One sets and gains strength on schedule; the other stays soft and bleeds water for hours. Nine times out of ten, the difference is fineness — how finely the clinker was ground — and the Blaine air permeability test is how you catch it before it reaches the pour.
Finer cement has more surface area, so it reacts with water faster: quicker setting, faster early strength, but also more water demand and heat. Too coarse and strength lags; too fine and it cracks and costs more to grind. The Blaine test puts a single number on it — specific surface area in m²/kg — per IS 4031 (Part 2), ASTM C204 and BS EN 196-6.
What the Blaine test actually measures
It measures how easily air flows through a compacted bed of cement of known weight and porosity. Finer particles pack tighter and resist airflow more, so the time the air takes to pass tells you the surface area. More resistance = finer cement = higher Blaine value.
Equipment required

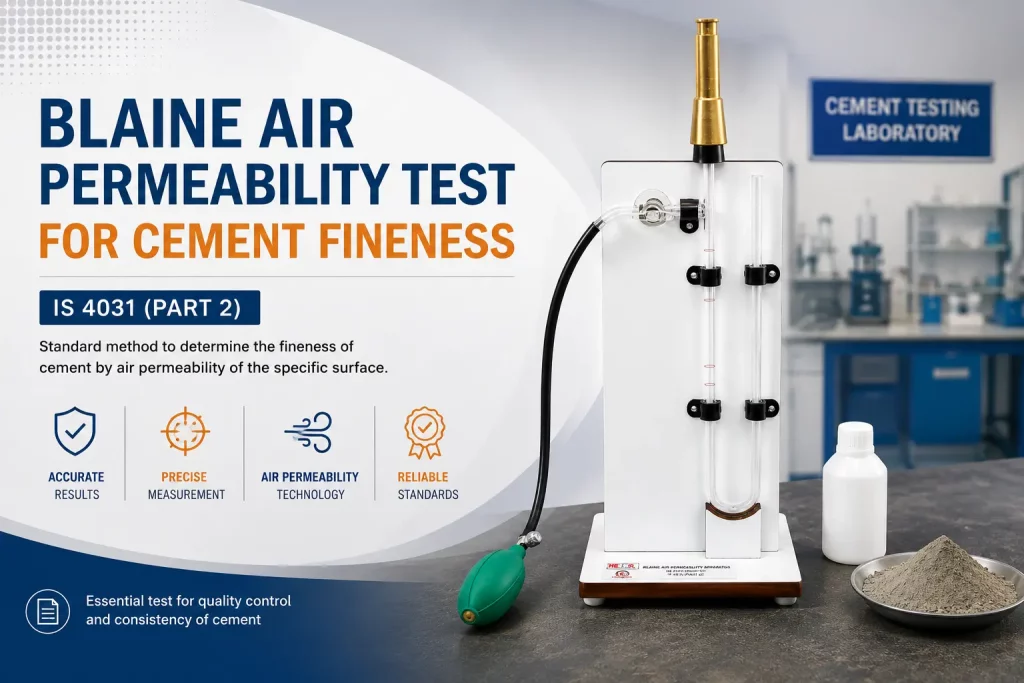

- Blaine air permeability apparatus — a U-tube manometer and a stainless-steel permeability cell with plunger and perforated disc
- Manometer liquid, filter paper discs, and a stopwatch (or the built-in timer on digital units)
- An analytical balance and a reference cement of known surface area for calibration
Test procedure (IS 4031 Part 2)
- Calibrate the cell volume using mercury and a reference cement — this fixes the bed porosity (usually 0.500).
- Weigh out the cement to give that fixed porosity, place it on a filter disc in the cell, level it, add a second disc, and compress with the plunger.
- Draw the manometer liquid up past the top mark, then let it fall.
- Time the fall of the liquid between the two etched marks.
- Compute specific surface area from the time, using the calibration constant. Digital Blaine units do this step automatically.
Typical Blaine values (specific surface area)
| Cement type | Typical Blaine (m²/kg) |
|---|---|
| OPC 33 Grade | ≥ 225 |
| OPC 43 Grade | ≥ 225 |
| OPC 53 Grade | ≥ 225 (usually 300–360) |
| PPC / blended | ≥ 300 |
The IS minimum is 225 m²/kg for OPC, but real-world 53-grade often runs 300–360. A value drifting toward the low end is your early warning of a coarse, under-performing batch.
Where labs get it wrong
- Skipping recalibration. The cell constant drifts; recheck it against a reference cement periodically or every Blaine number is suspect.
- Wrong bed porosity. Weigh to the calibrated porosity precisely — a small mass error throws the surface area off badly.
- Damp cement or damp discs. Moisture clogs the bed and inflates the reading.
Choosing a Blaine apparatus in India
JS Civil Lab Solutions supplies IS 4031 / ASTM C204-compliant Blaine air permeability apparatus — manual and digital — for cement plants, RMC labs, colleges and NABL laboratories, with a traceable calibration certificate and pan-India delivery. For a quotation, call or WhatsApp +91 93596 24761, or view it here:
→ Blaine Air Permeability Apparatus (IS 4031 Part 2)
Related: Cement & concrete testing equipment
Frequently asked questions
What is the Blaine value of cement? It’s the specific surface area in m²/kg measured by air permeability. IS 4031 requires a minimum of 225 m²/kg for OPC; 53-grade cement is typically 300–360 m²/kg.
Why is cement fineness important? Finer cement reacts faster with water — quicker setting and higher early strength — but needs more water and generates more heat. Fineness directly controls setting time, strength gain and workability.
Which standard covers the Blaine test? In India, IS 4031 (Part 2). Internationally, ASTM C204 and BS EN 196-6 cover the same air-permeability method.
